LingmouO-cup

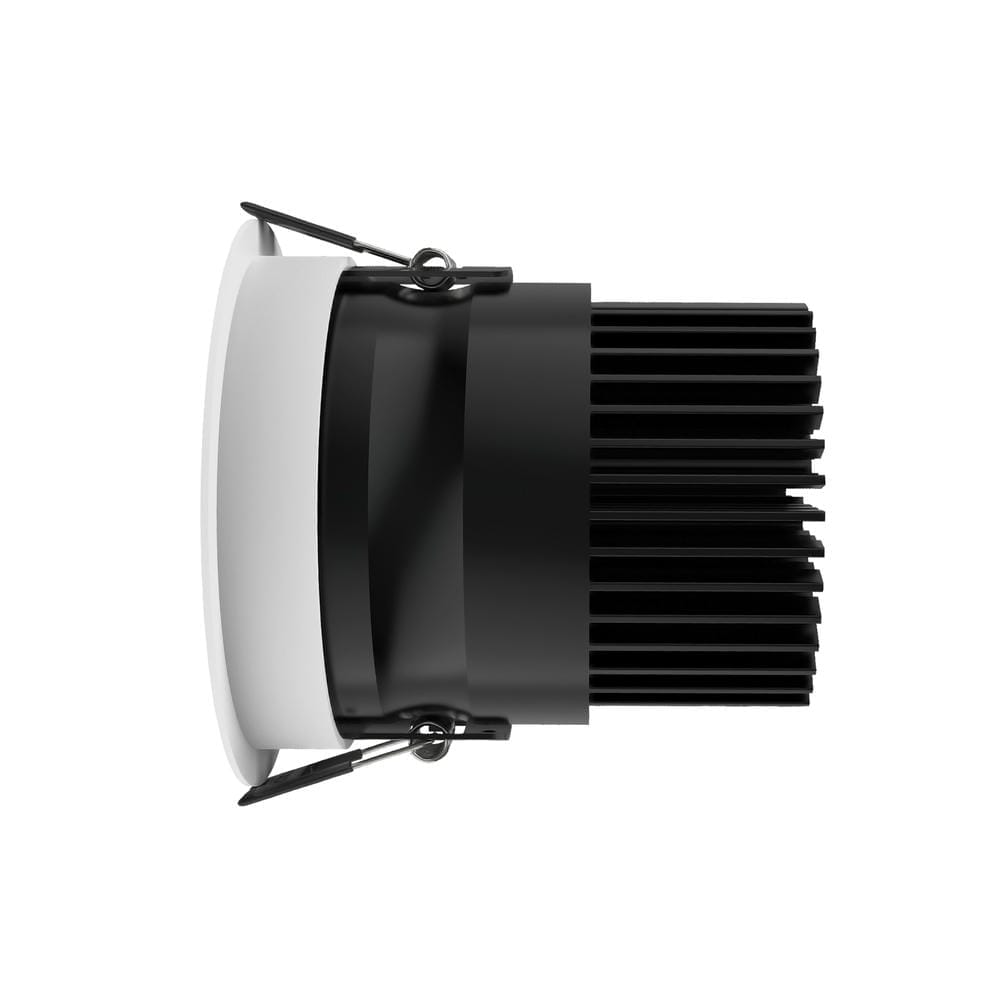

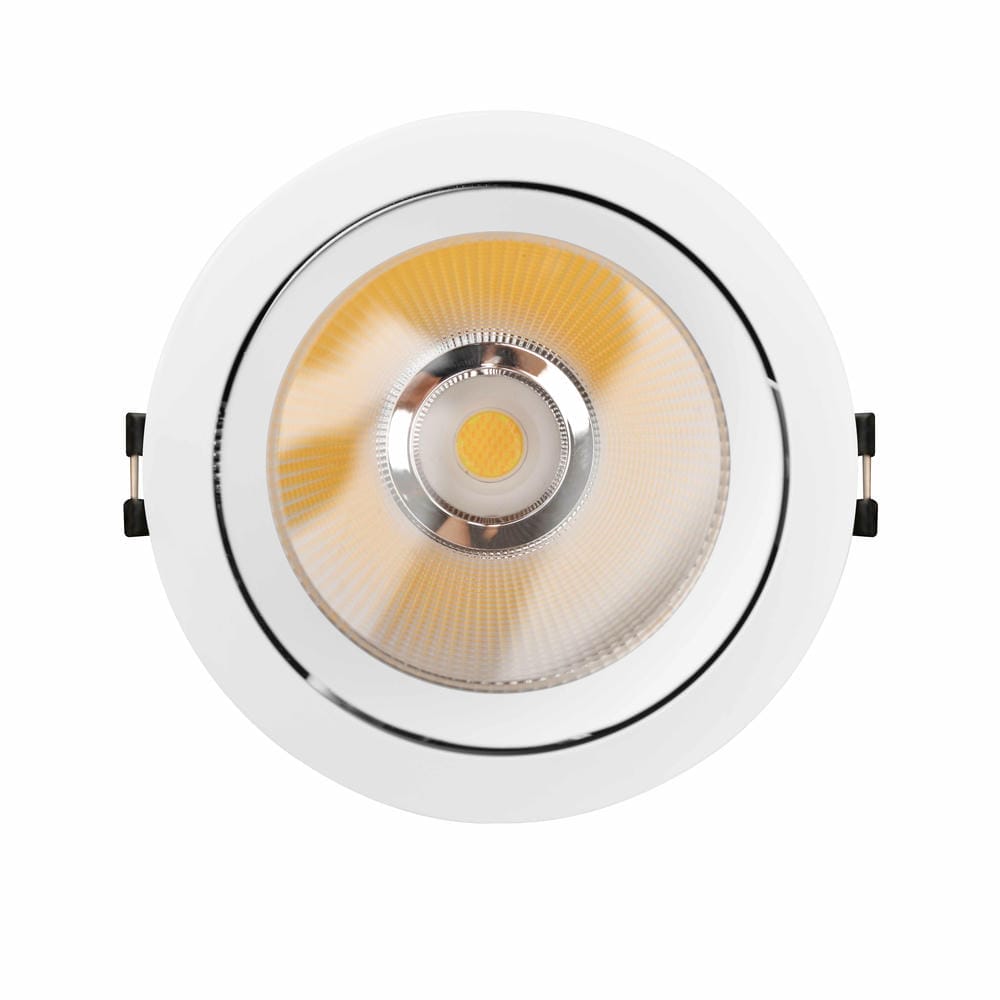

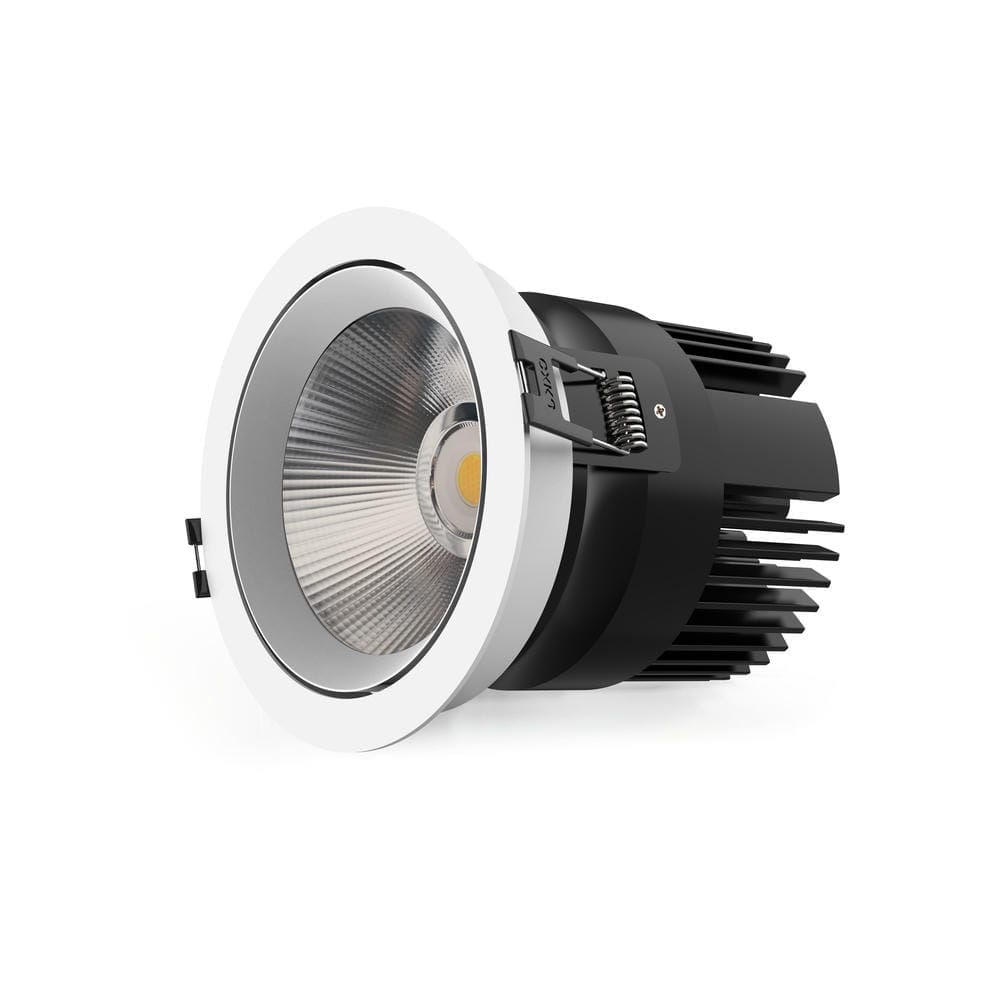

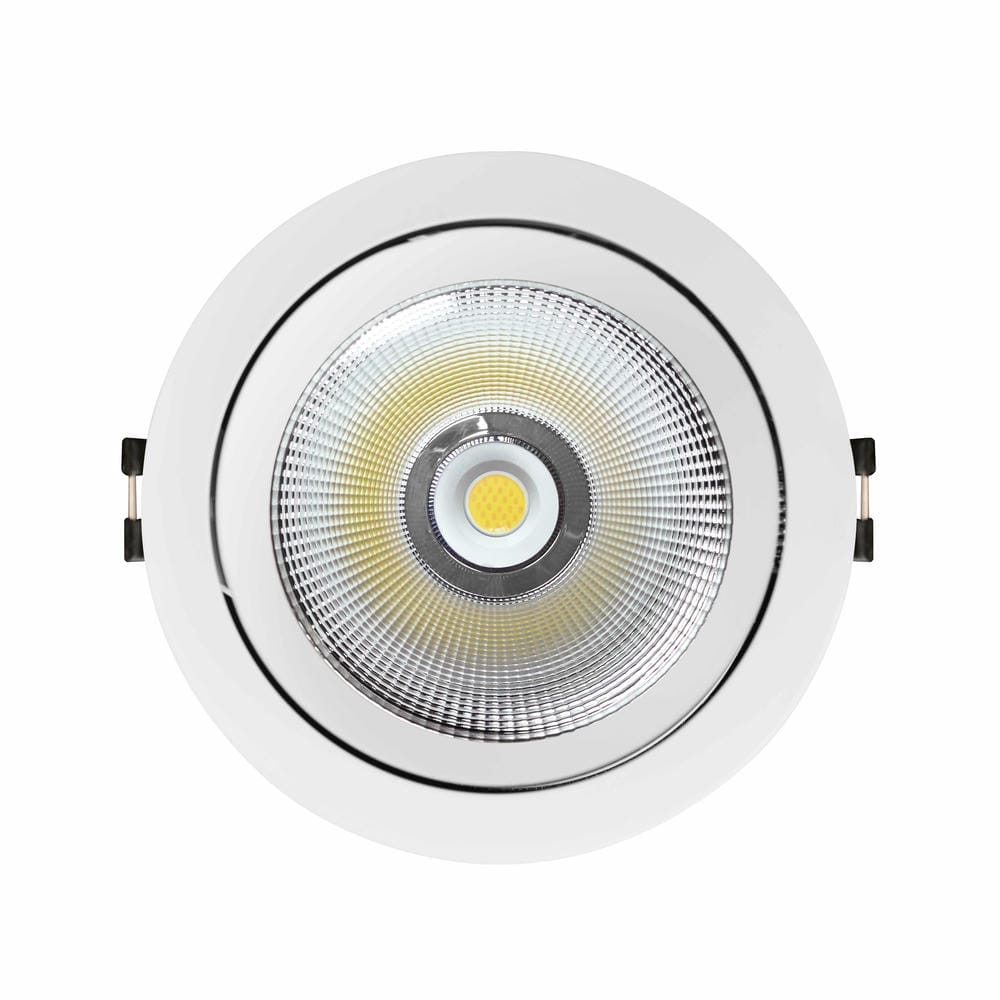

Lingmou O-Cup

In commercial lighting design, light transcends its basic functional role to become an artistic medium for shaping spatial atmosphere and visual rhythm. The Lingmou O-Cup, featuring an upgraded optical

system and refined structural aesthetics, is engineered for high-quality environments that demand uniform wall washing, broad-area accent lighting, and a sense of openness. It delivers a wider beam angle

and powerful, efficient illumination.

Core Highlights

1. O-Form Aesthetics, Seamless Integration

The "O-Cup" design philosophy originates from the pursuit of a perfect circular light beam and harmonious unity between the fixture's form and its light output.

· Precision Cold-Forged Monobody: The housing is manufactured from AL1060 aluminum alloy using a high-precision cold-forging process. This creates a dense, seamless structure with outstanding thermal

performance and strength. A fine sandblasted and anodized finish provides a matte texture for discreet integration into any ceiling.

· Minimalist Flush Design: With a 110mm cut-out, a face diameter of just 115mm, and a 105mm height, it achieves a nearly perfect flush installation. Visibly, only a subtle trim gap remains, reducing the

fixture's presence to an absolute minimum and preserving a clean, continuous ceiling plane.

2. Expansive Light Veil, Even Illumination

Moving beyond focused spots, it offers a broader optical approach, evolving from "highlighting a point" to "illuminating a surface."

· Comfortable Wide Beam: The 18° beam angle provides wide light distribution with soft, gradual falloff. It effectively covers larger wall or display areas, creating a uniform "veil of light" that eliminates harsh

hotspots and peripheral shadows—ideal for wall washing, window displays, and general accent lighting.

· High Output & True Color: Powered by high-performance LUMINUS LEDs, it delivers a substantial 3400lm ±10% output at 36W. Available in 3000K, 5000K, and 6500K color temperatures, it features

CRI ≥90 Ra at 3000K/5000K for accurate color and CRI ≥80 Ra at 6500K for bright, clear visuals.

3. Robust Performance, Reliable Operation

· Efficient Thermal Management: The cold-forged aluminum monobody acts as an effective passive heatsink, rapidly dissipating heat to ensure stable, long-term performance and a significantly extended

lifespan.

· Universal Fit & Easy Installation: The standard 110mm cut-out ensures compatibility with common ceiling systems. A modular design and user-friendly mounting clips make installation, aiming, and

maintenance straightforward.

The Lingmou O-Cup, with its expansive and even light field, powerful yet soft output, and minimalist form, is perfectly suited for wall lighting in high-end retail, uniform display lighting in galleries, and

ambient lighting in hotel lobbies and corridors. It uses light to define space, delivering a warm and richly layered visual experience.
